Pipeline Project





One third mile PL project covering

 3  construction sites:



               Table of Contents



                     VRU Vacuum Pump  - 2020

                     Pipeline Project - 2017

                     Tank Construction - 2006

                     Tank Rebuild - 2004

                     Truck Rack - 2002

                     High Tech

                     Legacy Assets



  Week 1 - PREP WORK

All images

captured with

 iPhone 7

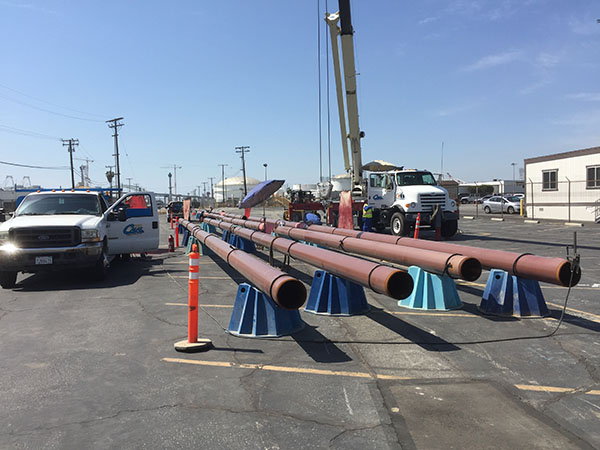

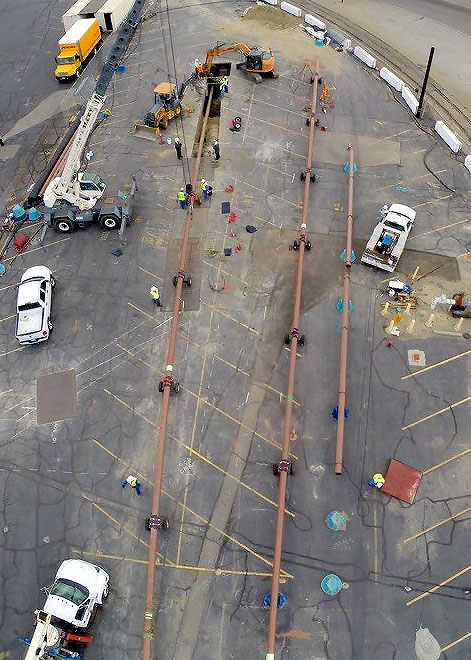

PARKING LOT:  Steel pipe layout in prep for HDD "pull".

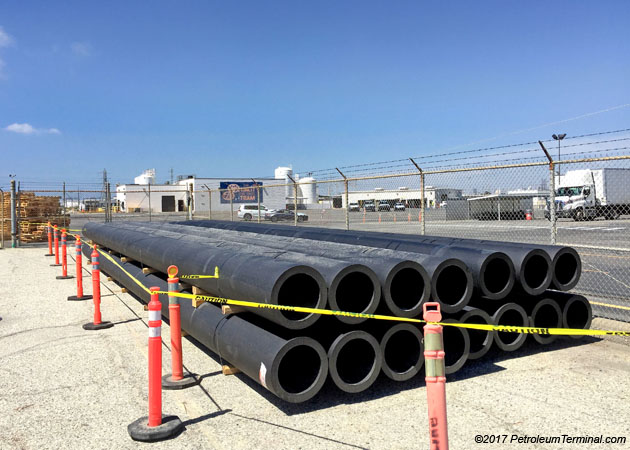

22" O.D. HDPE casing prior to startup of project.

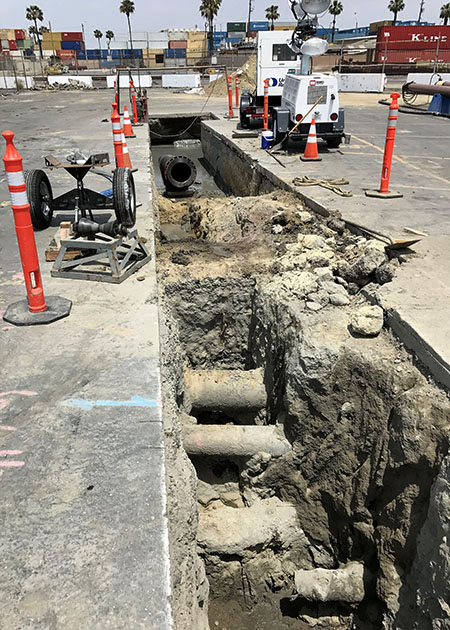

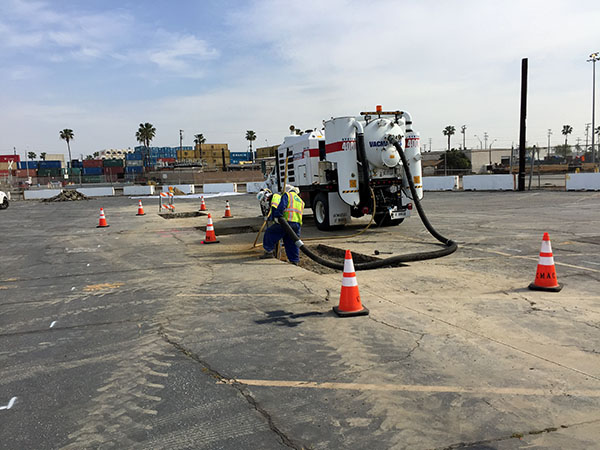

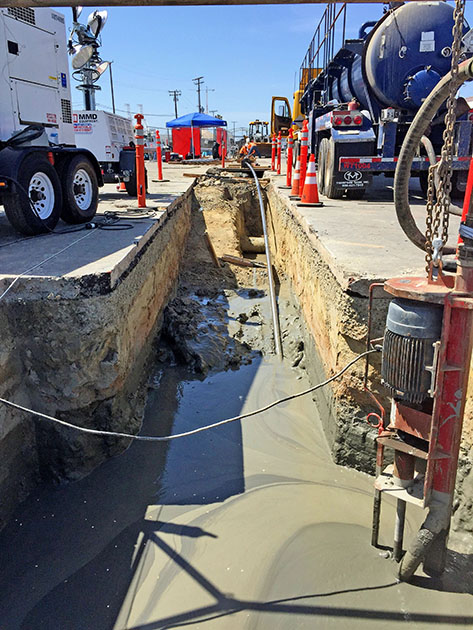

PARKING LOT:  Carefully removing dirt around underground pipes.



 Week 2 - TRENCHING PIPELINE FROM CONTAINER YARD

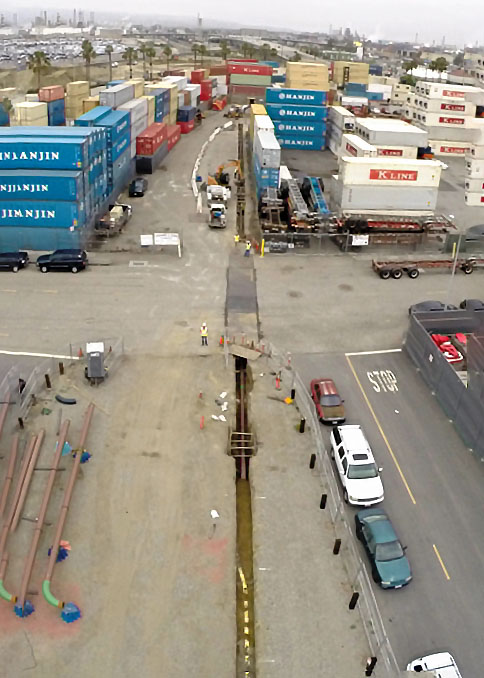

CONTAINER YARD:  Aerial from drone.

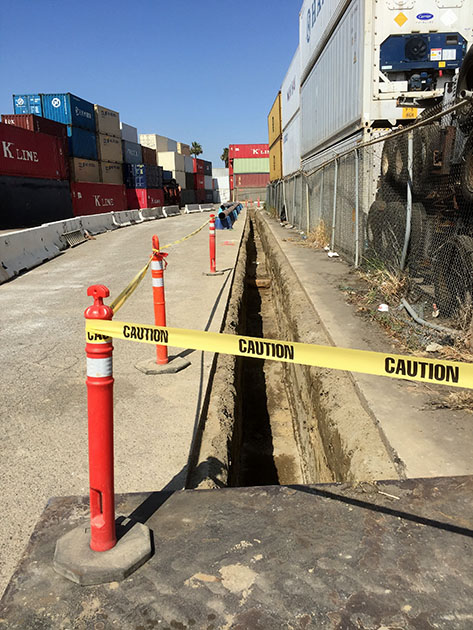

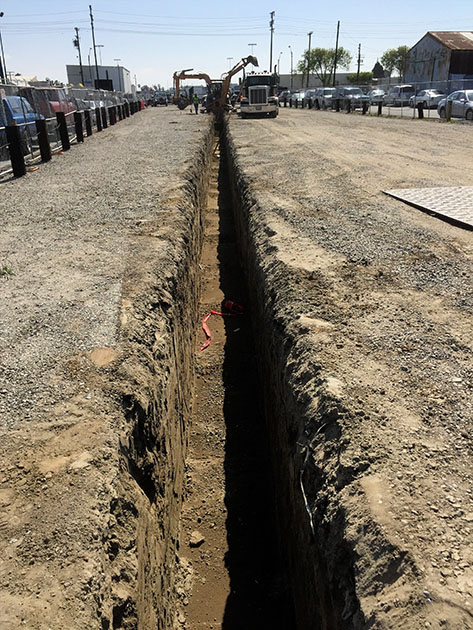

CONTAINER YARD:  Trenching operation.











CONTAINER YARD:  Trenching  to above ground manifold.






CONTAINER YARD:  Ready to install pipe.

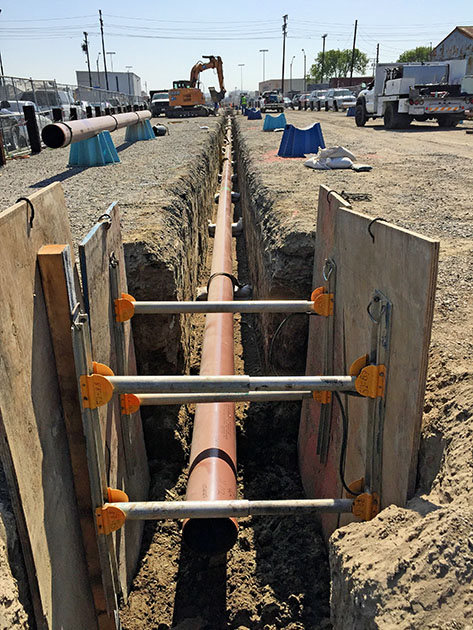

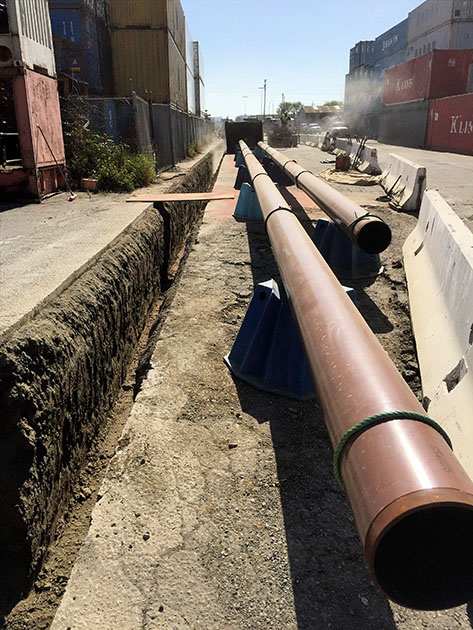

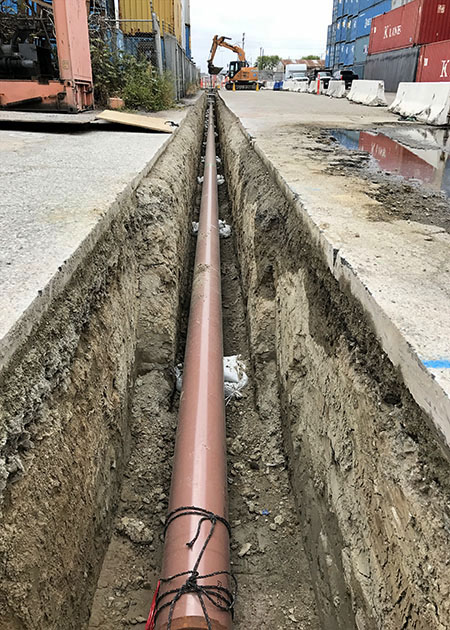

CONTAINER YARD:  Laying out pipe in trench to manifold.



  Week 3 - MANIFOLD WORK

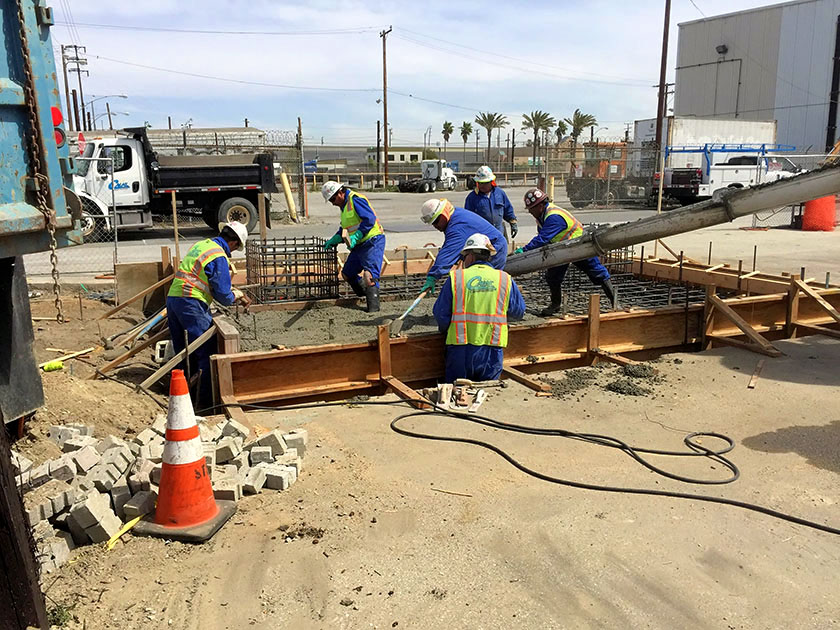

ABOVE GROUND MANIFOLD:  Pouring concrete to support valves & piping.






ABOVE GROUND MANIFOLD:  Pipeline work under street.



  Week 4 - HDD IN PARKING LOT

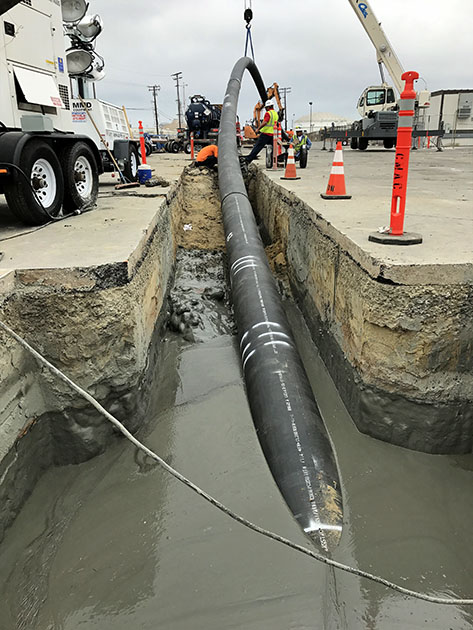

PARKING LOT:  Drone view pulling pipeline thru casing.

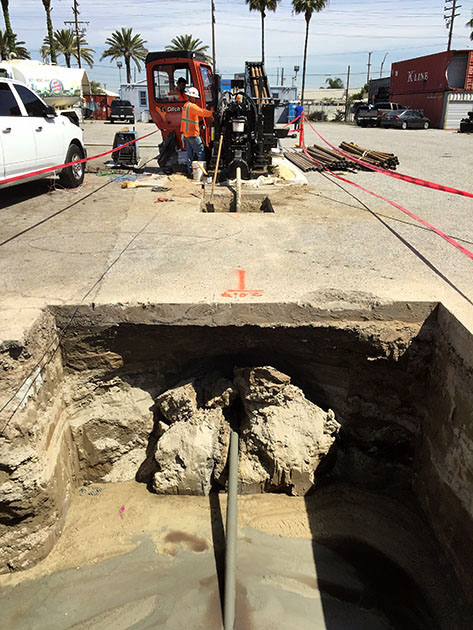

CONTAINER YARD:  Ditch Witch drilling bore hole.

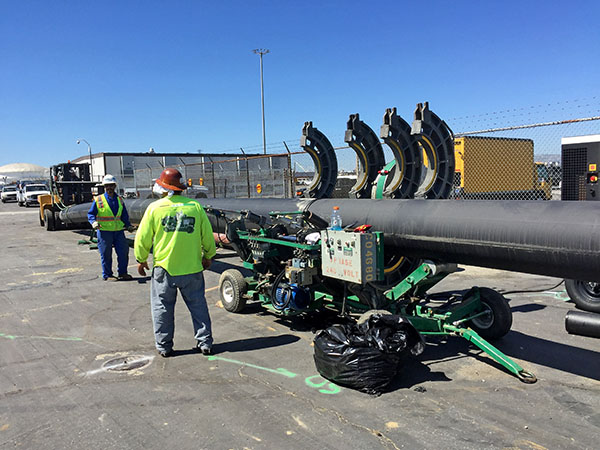

PARKING LOT:  Fusing HDPE Pipe.






PARKING LOT:  Reaming: 12", 20" 33" after successful initial boring.

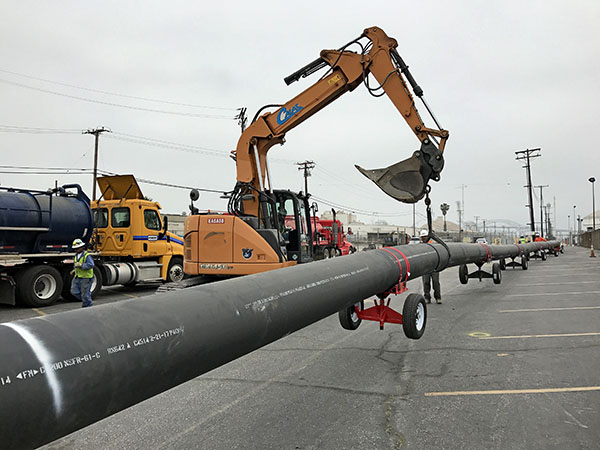

PARKING LOT:  HDPE Pipe lined up for "pull".






PARKING LOT:  HDPE pipe final adjustments.

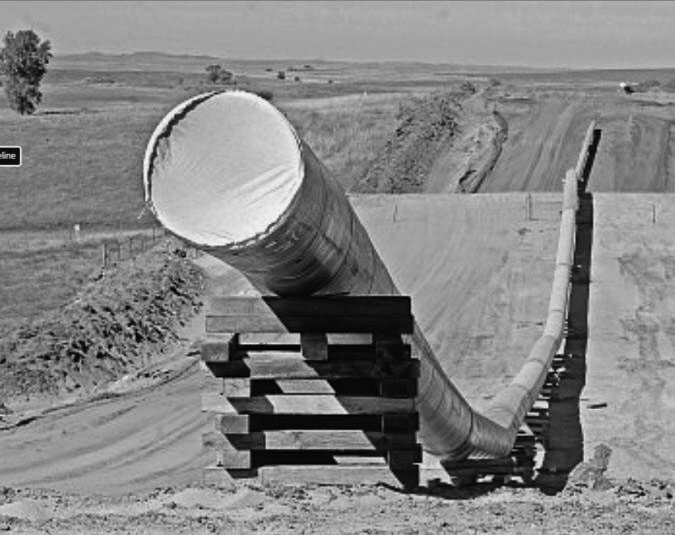

Dakota Access Pipeline.  (File Photo - For comparison purposes only.)





Compare the terrain, the obstacles, the congestion, the potential

danger to health and environment.  Compared to the pipeline

illustrated, the Dakota Access is a piece-of-cake.

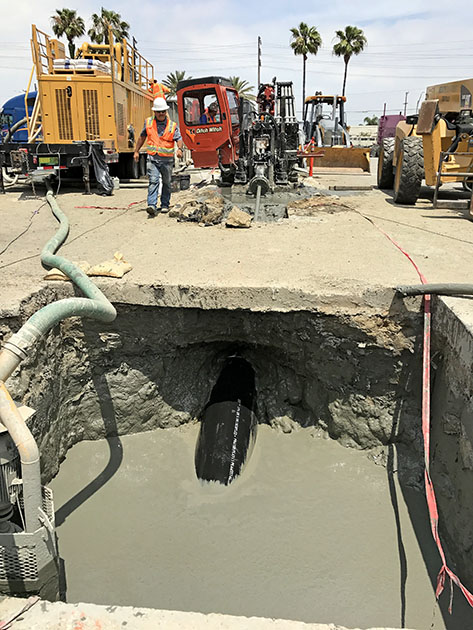

CONTAINER YARD:  Ditch Witch pulls 22" HDPE casing thru bore hole.



  Week 5





PARKING LOT:  Getting ready to pig the casing.

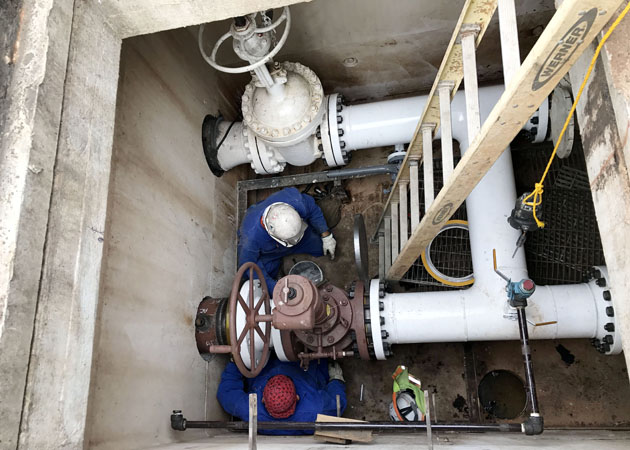

PARKING LOT:  Connecting to Underground Vault.






CONTAINER YARD: PL ready to be slurried.

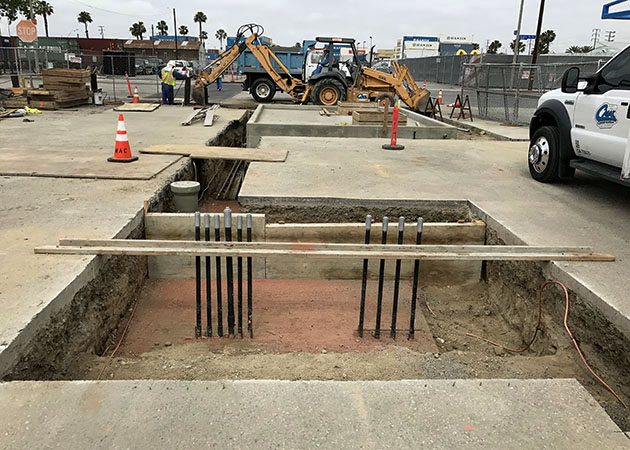

ABOVE GROUND MANIFOLD:  Instrumentation pad ready to be poured.

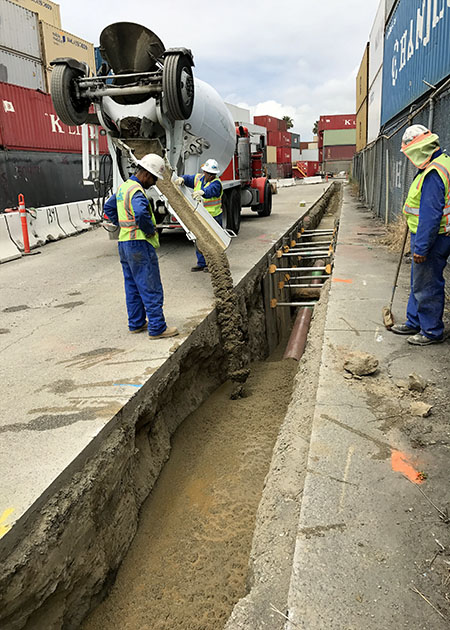

CONTAINER YARD:  Pouring slurry in trench.



   Week 6 & 7

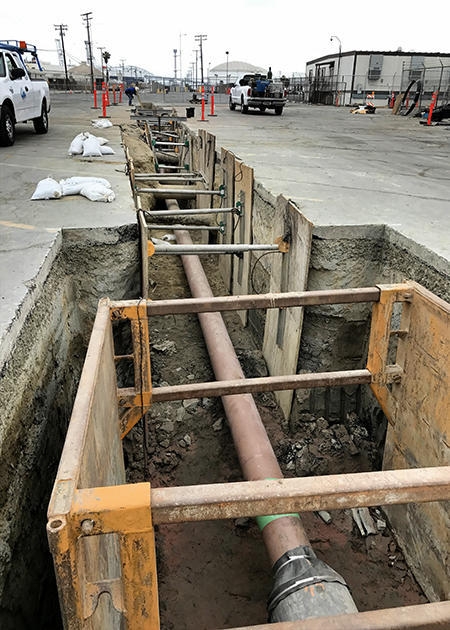

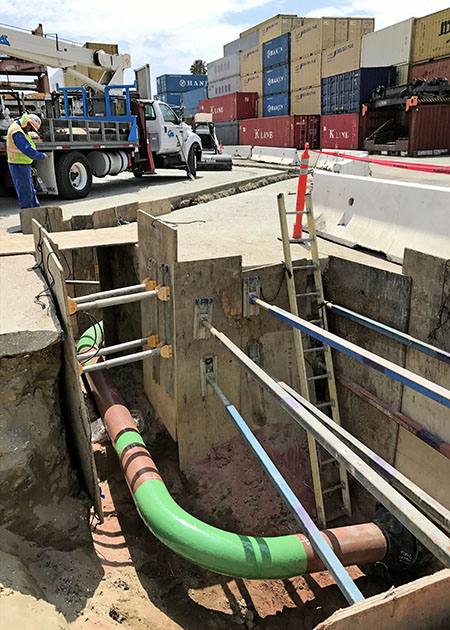

CONTAINER YARD:  Tying in bore PL to PL to manifold.






CONTAINER YARD:  Ready for slurry.

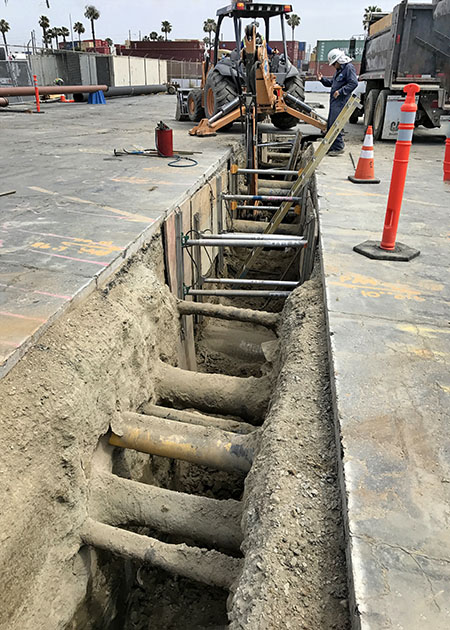

PARKING LOT:  No shortage of pipes to avoid.



   Week 8

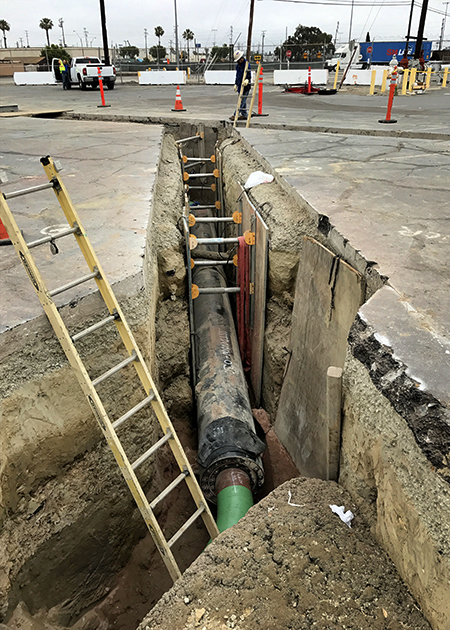

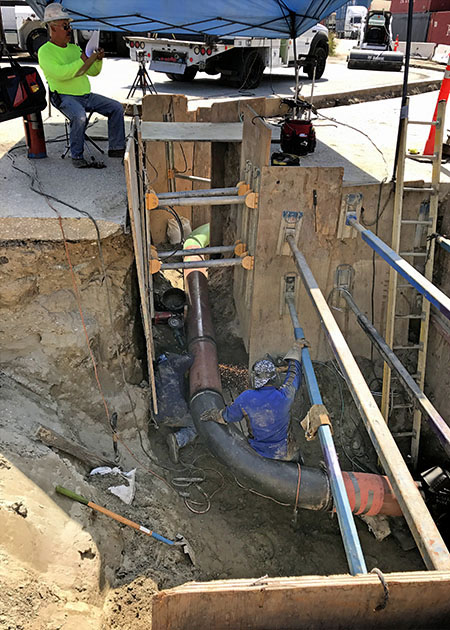

PARKING LOT:  Boot & PL routed thru pipes.






PARKING LOT:  Casing for future rail spur.

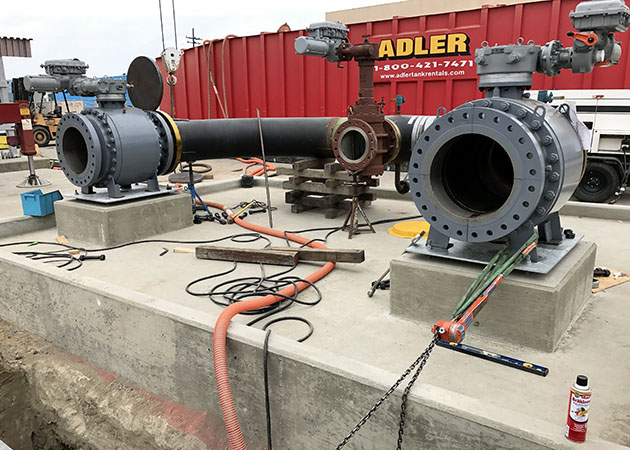

ABOVE GROUND MANIFOLD:  manifold placement on pad.

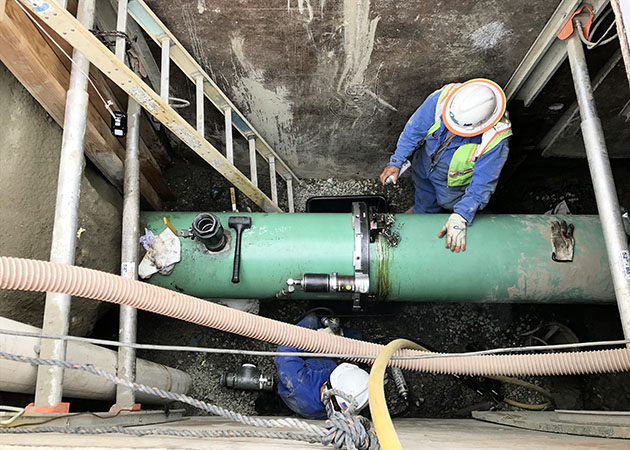

ABOVE GROUND MANIFOLD:  Cutting into 20" pipeline.

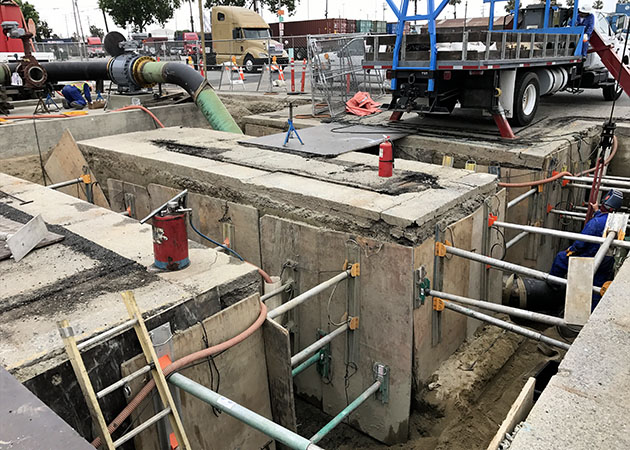

ABOVE GROUND MANIFOLD:  Shoring & Prep.






ABOVE GROUND MANIFOLD:  Lining up east leg.

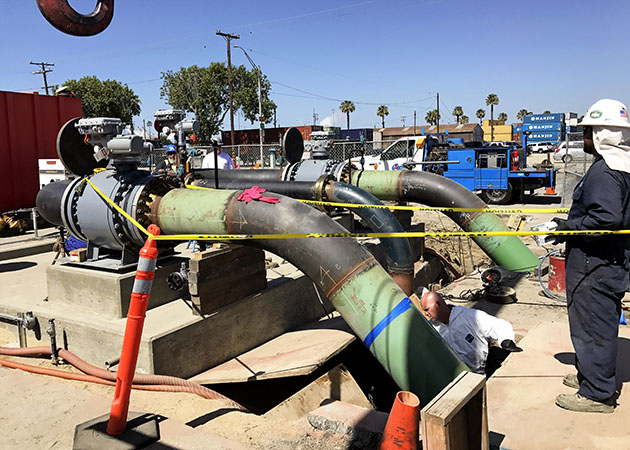

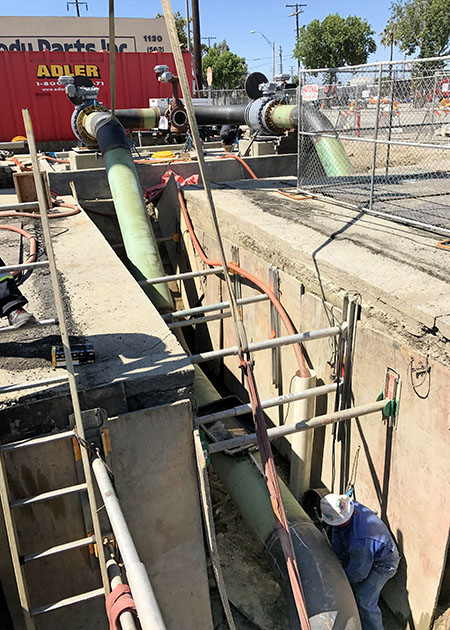

ABOVE GROUND MANIFOLD:  Connecting Pipelines.



   Final

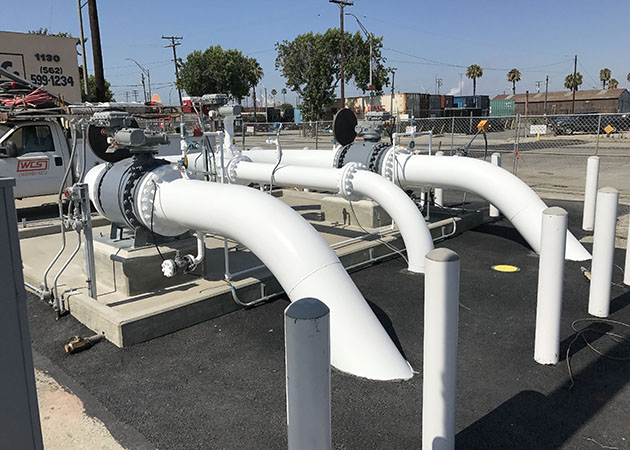

ABOVE GROUND MANIFOLD:  Sand blasted and coated.



07/18/17
